3 Phase Slip Ring Generator - LV
AC Generators (Slip Ring)

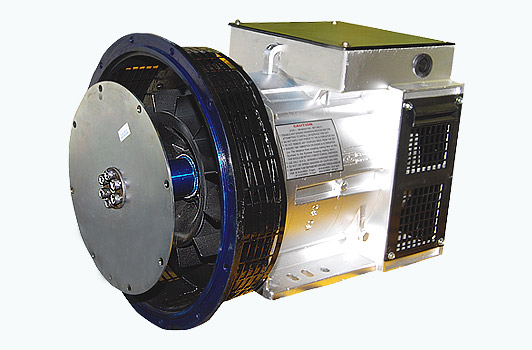

3 Phase Slip Ring Generator - LV
The Compact Series of Slip Ring Alternators are manufactured for Agro industries. These alternators have a high Motor Starting Capacity. Due to the use of High Grade Carbon Brush Holder Assembly for these units, the alternators have a longer durability even while operating in continuously adverse conditions.
| RATING | VOLTAGE | FRAME | STANDARD |
| 5 - 82.5 kVA | 415 V | 132 - 200 | IEC, IS, BS |
- Voltage Regulation +/-- 5 %
- Aluminum Gravity Die Cast Stator Housing for better heat dissipation and longer life
- Specially designed compact slipring and brush assembly.
- Class H insulation
- Available in both Single and Double Bearings Construction.
- Air Flow from non-drive end
PRODUCT PARAMETERS SPECIFICATION 415 Volts Voltage regulation + / - 5% Output 5 KVA to 82.5 KVA No. of Phases Three Frequency 50Hz ( 60 Hz optional) 1500 Power Factor 0.8 ( lagging) Four Type of Enclosure SPDP Degree of Protection IP23 Mounting Horizontal Foot Mounted (B3) Ambient Suitable upto 40 degree Centigrade Suitable upto 1000 meters Temperature rise Limited to class H limits. Type of Construction Single Bearing or Double Bearing
